# Hydronic and Geothermal Pre-Design Guide for Architects and Builders
SóGeo specifies and installs hydronic and geothermal systems across Melbourne. Director Darren Burch has been delivering hydronic projects for over twenty years, fourteen of those years in Australia, and draws on three generations of hydronic experience from Ireland. This guide reflects the design decisions we walk through with architects and builders at the pre-design stage of every project.
### Why Early Coordination Matters
Hydronic and geothermal systems deliver exceptional comfort and efficiency, but they require coordination across several disciplines. Decisions about plant space, pipe routes, drilling areas and electrical capacity are much easier to resolve at concept stage than during construction.
Early coordination helps avoid:
- Late design changes to slab thickness or floor build-ups
- Conflicts between hydronic pipework and structural elements
- Insufficient plant room or service space
- Electrical capacity upgrades late in the project
- Acoustic issues from poorly positioned plant equipment
For architects and builders, involving the system designer early ensures the heating and cooling solution supports the overall architectural intent rather than becoming a retrofit compromise.
### The Coordination Pack
A typical pre-design coordination pack includes the technical information required for consultants, architects and builders to move forward with confidence.
Key documents typically include:
- Preliminary heating and cooling load calculations
- Concept system layout (hydronic zones, emitters, plant)
- Plant room requirements and equipment schedule
- Borefield concept (for geothermal projects)
- Electrical demand estimates
- Acoustic considerations and plant positioning
- Integration notes for MEP consultants
- Cost analysis & ROI
Providing this information early allows the broader design team to incorporate the system into architectural drawings and service coordination.
### Drawings & Information Required
To prepare an accurate system concept, the following information is typically required from the design team:
- Architectural plans, sections and elevations
- Floor areas and ceiling heights
- Building orientation and glazing schedules
- Insulation and building fabric details
- Preliminary mechanical or MEP layouts
- Site plans showing access and drilling constraints
- Landscape and pool layouts (if relevant)
This information allows accurate heating and cooling load calculations and determines the size of the **Chilled water fan coils,** **radiators, underfloor heating pipe spacings & the size of the geothermal system.**
### Key Early Service Decisions
Several important decisions affect the performance and installation of hydronic systems. Addressing these during early design avoids costly revisions later.
### System Type
Projects typically choose between:
- **Ground-source heat pumps (geothermal)**
- **Air-source heat pumps**
- **Hybrid hydronic systems**
The decision depends on site conditions, drilling feasibility, energy targets and budget.
### Heat Emitters
Common emitter options include:
- Underfloor heating
- Hydronic radiators
- Fan coil units for heating and cooling
Many projects combine multiple emitter types depending on room usage and floor construction.
### Zoning Strategy
Hydronic systems operate best when properly zoned. Early zoning planning considers:
- Living vs bedroom zones
- Multi-storey temperature variation
- Commercial tenancy divisions
- Smart controls and occupancy patterns
Well-planned zoning improves comfort and reduces operating costs.
### Plant Space, Acoustic & Electrical Planning
Mechanical plant requires thoughtful placement to maintain quiet operation and service access.
Key planning considerations include:
**Plant Room Requirements**
- Space for heat pumps, buffer tanks and manifolds
- Clear maintenance access
- Drainage and ventilation provisions
- Proximity to hydronic distribution zones
**Acoustic Considerations**
- Avoid locating plant adjacent to bedrooms or quiet living areas
- Consider vibration isolation and acoustic enclosures
- Plan external plant locations carefully in dense urban sites
**Electrical Requirements**
Heat pumps require adequate electrical supply capacity. Early planning ensures:
- Switchboard capacity is sufficient
- Dedicated circuits are allocated
- Future electrification upgrades are considered
### BIM & MEP Coordination
For larger residential or commercial projects, coordination within BIM or MEP workflows helps reduce service clashes and improves installation accuracy.
Typical integration notes include:
- Hydronic pipe routing zones within slabs or ceilings
- Plant equipment dimensions and service clearances
- Borefield layouts for geothermal installations
- Coordination with structural and plumbing services
- Access requirements for commissioning and maintenance
Including hydronic systems within the BIM coordination model helps prevent late-stage conflicts and keeps construction timelines on track.
01

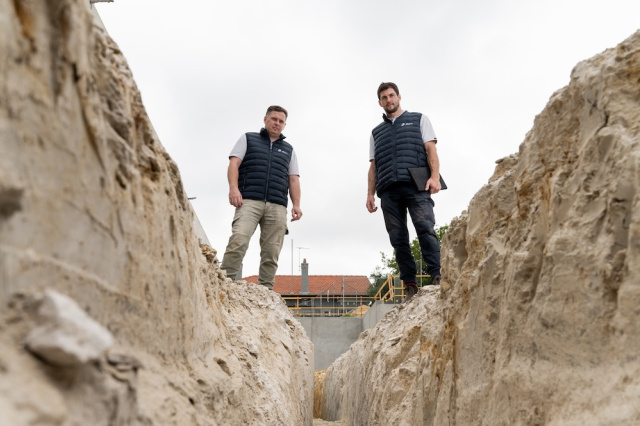

![Residential geothermal heat pump installation]()
### Suggested Specification Language
Architects and consultants often require specification language for tender documentation. Typical specifications include:
- Hydronic heating design temperatures
- Heat pump performance requirements
- Pump efficiency standards
- Pipe insulation standards
- Control system integration
- Commissioning and balancing requirements
Using clear specification language ensures contractors deliver systems that meet the intended performance.
## Frequently asked questions from architects and builders
### How early should hydronic or geothermal systems be considered in a building design?
➕ At concept stage. Hydronic and geothermal both have implications for slab thickness, plant room footprint, electrical capacity, and structural coordination that are expensive to fix once construction documents are finalised. SóGeo prefers to be engaged before slab design is locked, even if just for a thirty-minute coordination conversation. By construction documentation stage, the system type, emitter layout, and plant location should be settled.
### What information does SóGeo need from an architect at concept stage?
➕ Floor plans (DWG or PDF), site plan with orientation and shade, a clear indication of which spaces are heated and which are not, ceiling void and floor build-up dimensions, electrical service capacity at the site, and any client preferences on emitter type or comfort priorities. From this we produce a preliminary heat-loss calculation and a coordination pack with plant room sizing, indicative pipework routes, and a draft specification.
### Can hydronic or geothermal systems be retrofitted into existing buildings?
➕ Yes. Hydronic retrofits are routine for Melbourne homes built between the 1970s and 2010s, particularly for boiler-to-heat-pump conversions that retain existing radiators. Geothermal retrofits are harder but feasible — they require drilling access for the borefield, which is the main constraint on tight inner-Melbourne sites. SóGeo’s sister company GT Drilling handles compact-rig vertical drilling and horizontal trench options for sites where conventional access is not possible.
### How much plant room space does a residential hydronic heat pump system need?
➕ For a typical Melbourne home, allow 8 to 10 square metres of plant space, with 2.2 metre minimum ceiling, separate from habitable rooms for acoustic reasons. The space accommodates the indoor heat pump unit, buffer tanks and hot water tanks and electrical MSSB & BMS gear. Larger or zoned projects need more. SóGeo provides a plant room revit models with all geothermal installations.
