Geothermal Drilling Options for Tight Melbourne Sites

Many Melbourne homes and commercial properties sit on compact blocks, heritage sites, or highly landscaped land where traditional geothermal ground loops seem impossible. The good news is that modern geothermal systems can adapt to tight or complex sites through a range of drilling and loop installation methods.

Vertical boreholes, lake or pond loops, and horizontal trench systems each offer viable solutions depending on the available land, ground conditions, and council constraints.

Understanding these options early in the design process ensures your geothermal system is efficient, compliant, and installed with minimal disruption to the property.

Site Constraints: What Determines the Right System

Before selecting a drilling method, we assess the site to understand the physical and regulatory constraints.

Typical factors include:

Available land area and landscaping
Access for drilling equipment
Existing structures, pools, or heritage features
Underground services and utilities
Soil and rock composition
Proximity to waterways or ponds

Melbourne properties often present unique challenges. Inner-city homes may have minimal yard space, heritage overlays, or restricted access. Coastal or rural properties may have different geological conditions that influence drilling methods.

A professional site review allows us to match the ground loop design to the property rather than forcing a one-size-fits-all solution.

Vertical Boreholes: The Go-To Option for Tight Blocks

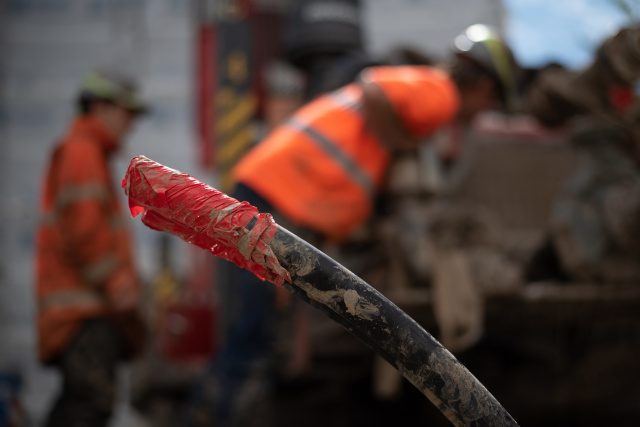

For properties with limited land area, vertical geothermal boreholes are often the most practical solution.

Instead of long horizontal loops, the system uses deep vertical pipes installed into drilled boreholes, typically between 60 and 120 metres deep depending on the heating and cooling load.

Advantages of Vertical Systems

Minimal surface space required
Ideal for small suburban blocks or inner-city homes
Little disruption to gardens and landscaping
Highly stable underground temperatures
Long system lifespan (often 50+ years for the ground loop)

Drilling rigs are designed to operate in tight spaces, and once the boreholes are complete the surface area can usually be fully restored.

Vertical systems are frequently used in Melbourne’s heritage homes, high-end renovations, and architect-designed builds where preserving the site layout is critical.

For more information about the technology behind these systems, see our guide to Ground Source Heat Pumps.

Lake or Pond Loops: A Highly Efficient Option

Where a suitable body of water exists on the property, lake or pond geothermal loops can be one of the most efficient and cost-effective solutions.

Instead of drilling, coils of geothermal piping are submerged in the water and connected back to the heat pump system.

Benefits of Water-Based Loops

Lower installation cost compared with deep drilling
Excellent heat transfer performance
Minimal drilling or excavation required
Reduced installation time

Because water maintains stable temperatures year-round, lake loops often perform exceptionally well.

This approach is ideal for rural properties, estates, and homes with large dams or ponds, which are common on the Mornington Peninsula and other regional areas around Melbourne.

SóGeo has successfully implemented lake-loop systems where traditional drilling would have been expensive or impractical.

Horizontal Trenching: When Land Area Allows

Where sufficient land area is available, horizontal geothermal trenches can provide a cost-effective installation method.

This system involves excavating shallow trenches—typically 1 to 2 metres deep—where geothermal pipes are laid in long loops.

Key Advantages

Lower drilling cost
Simple installation using standard excavation equipment
Ideal for large residential blocks or new builds
Easy to integrate during landscaping or construction

However, trench systems require significant land area, which makes them less suitable for tight urban sites.

They are commonly used in:

Acreage properties
Rural homes
Large commercial developments
New builds with open land before landscaping

Soil conditions also influence trench viability. Clay soils common in parts of Melbourne conduct heat well, while sandy soils may require longer loop runs.

Soil and Rock Conditions Matter

Melbourne’s geology varies significantly across suburbs.

Ground conditions affect both drilling complexity and system design.

Examples include:

Clay soils – excellent thermal conductivity
Sand or loose fill – may require specialised drilling methods
Basalt or rock layers – slower drilling but often very stable for vertical bores

Experienced geothermal installers plan loop lengths and drilling methods based on these conditions to ensure long-term system performance.

Council and Planning Considerations

Some geothermal installations require council awareness or planning consideration, particularly when:

Working within heritage overlays
Installing systems near waterways or dams
Drilling on dense residential sites
Operating in environmentally sensitive areas

Professional installers manage these approvals and ensure installations meet Australian standards.

Early consultation prevents delays during construction or renovation projects.

Real Melbourne Case Examples

Several SóGeo installations demonstrate how flexible geothermal systems can be on constrained properties.

Main Ridge Project – utilised a lake loop system integrated with a rural property dam.

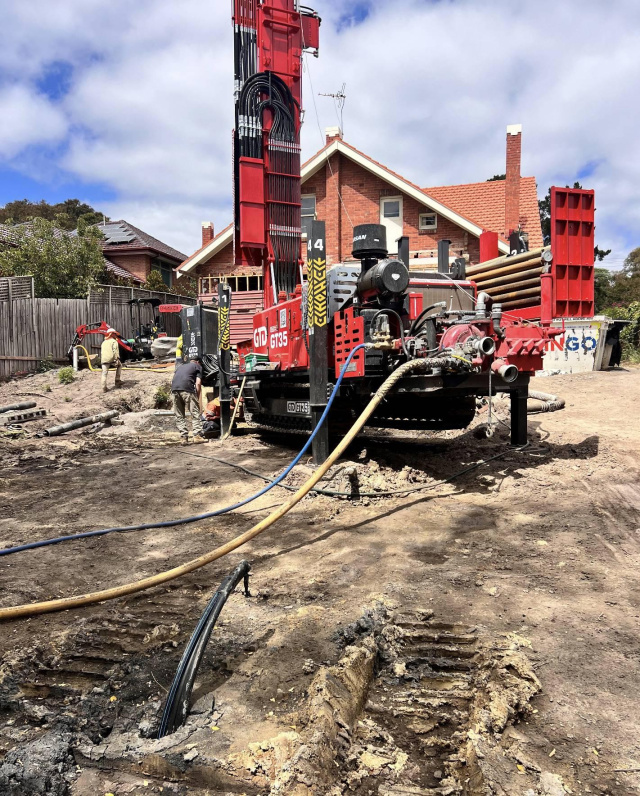

Kooyong Heritage Home – installed vertical boreholes in a tight urban block without disrupting the landscaped garden.

These examples highlight how geothermal systems can work even in locations where conventional heating systems might normally be chosen.

Choosing the Right Drilling Option

Each geothermal project begins with a simple question:

What does the site allow?

The right solution depends on:

Land availability
Ground conditions
Access for drilling
Project budget
Heating and cooling demand

With the right design approach, geothermal systems can be installed on properties that initially appear too small or complex.

Book a Site Review

If you’re considering geothermal heating or cooling and aren’t sure whether your property is suitable, the best next step is a site assessment.

Our team can review your block, discuss drilling options, and recommend the most practical loop configuration.

Explore more about Ground Source Heat Pumps, review our Melbourne case studies, or contact us to arrange a professional site review.
